About

ut804

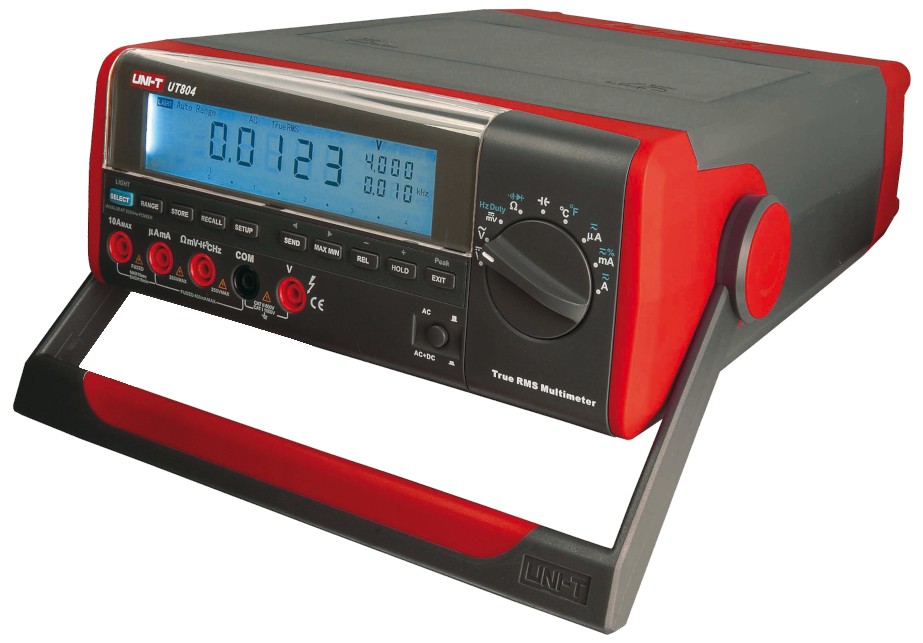

Digital multimeter manufactured by UNI-T Group Limited . Model UT804 has RS232 interface that allows to recieve measurment results. Software provided by manufacturer works only with microsoft based operating systems, so I prepare simple program for linux users. Most protocol reengineerd was done thanks to UT804.LOG (see download bellow) I found in the Internet (no link, sorry).

Licence and warranty

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the print GNU General Public License for more details http://www.gnu.org/licenses/ .

Program description and usage

Download, untar and compile code:

wget https://mxn.scc-cluster.net/_other/ut804/download/ut804_logger_latest.tar.gz
tar -xzf ut804_logger_latest.tar.gz
gcc ut804_logger_latest.c -o ut804_logger

Familiarize yourself with program options.

Run program with choosen options. Make sure mm front pannel button [SEND] is activated.

Download

ut804_logger_latest.tar.gz , 0.0.4 , newest stable version ut804_logger_0.0.4.tar.gz , 0.0.4 , version full functionality, test in progress ut804_logger_0.0.3.tar.gz , 0.0.3 , version without full functionality ut804_logger_0.0.2.tar.gz , 0.0.2 , version without full functionality ut804_logger_0.0.1.tar.gz , 0.0.1 , this is temporary text UT804.LOG , - , oryginal file I found in Internet which allow me to develop program

Revision history

  • 0.0.4: release 2013.10.05
  • 0.0.3: release 2013.09.31
  • 0.0.2: release 2013.09.24
  • 0.0.1: release 2012.03.16
  • 0.0.0: test
